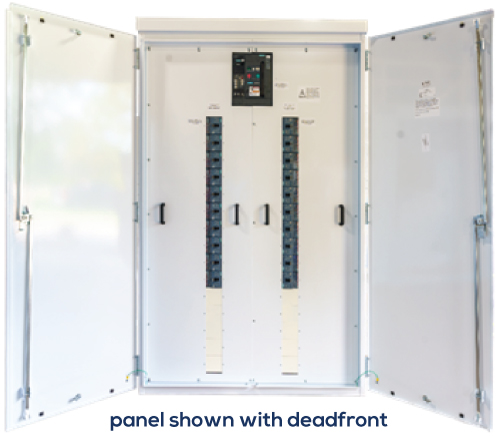

1600A to 4000A UL 891 listed circuit breaker panels for indoor or outdoor use.
Key Advantages

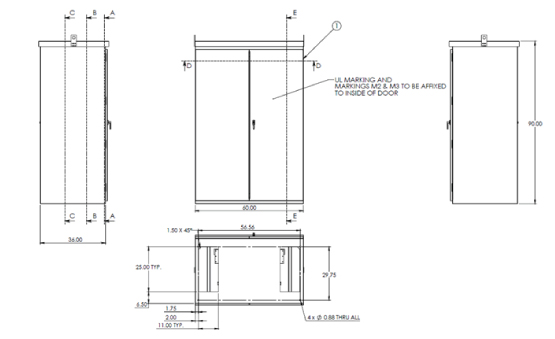

• 415 or 600VAC, 3PH, 4W (90”x 60”x 36”)
• 1600A to 4000A main breaker / bus ratings
• Up to 3,000kVA transformer connection
• Main lug only option also available
• High density (up to 40 x 100AF) branch feeders
• Feeder ranges: 100AF, 150AF, 250AF, 400AF, 600AF, 800AF
• Feeder trip type: Thermal Mag or Electronic Trip
• Interrupt Ratings:
• 65kAIC @ 415 / 480VAC
• 50kAIC @ 600VAC
• 1600A to 4000A main breaker / bus ratings
• Up to 3,000kVA transformer connection
• Main lug only option also available
• High density (up to 40 x 100AF) branch feeders
• Feeder ranges: 100AF, 150AF, 250AF, 400AF, 600AF, 800AF
• Feeder trip type: Thermal Mag or Electronic Trip
• Interrupt Ratings:
• 65kAIC @ 415 / 480VAC
• 50kAIC @ 600VAC
