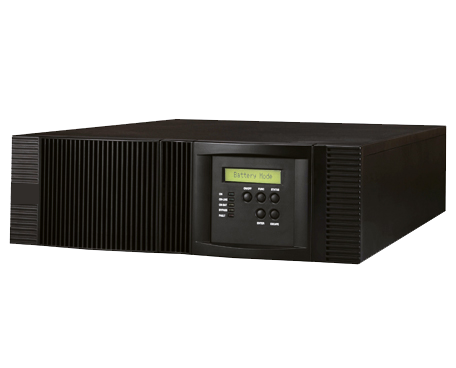

Rack Mount Specifications
| UPS |
|---|
| Model |
VPR
1000 |
VPR
1500 |
VPR
2000 |
VPR
3000 |
VPR
2000
(2U+2U) |
VPR
3000
(2U+2U) |
VPR
6000 |
VPR
10000 |
| Capacity (VA) |
1000 |
1500 |
2000 |
3000 |
2000 |
3000 |
6000 |
10K |
| Capacity (Watts) |
900 |
1350 |
1800 |
2700 |
1800 |
2700 |
5400 |
9K |
| Form |
Tower or Rack |
| Phase |
Single Phase |
| Energy Saving |
Yes - ECO mode Efficiency > 94% |
| INPUT |
|---|
| Voltage |
100 / 110 / 115 / 120 / 127 / 208 / 220 / 230 / 240 Vac |
208 / 220 / 230 / 240 Vac |
| Voltage Range |
110 Vac |
60 ~ 144 Vac < 25% Load
70 ~ 144 Vac < 50% Load
80 ~ 144 Vac < 75% Load
90 ~ 144 Vac < 100% Load |
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load |
| 220 Vac |
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load |
| Frequency Range |
50 / 60 Hz (Auto Sensing) |
| Power Factor |
> 0.97 |
| Cold Start |
Yes |
| OUTPUT |
|---|
| Rated Power Factor |
0.9 |
| Waveform |
Pure Sine Wave |
| Voltage |
100 / 110 / 115 / 120 / 127 / 208 / 220 / 230 / 240 Vac ± 2% |
208 / 220 / 230 / 240 Vac ± 2% |
| Frequency |
50 / 60 Hz ± 0.25 Hz |
| Transfer Time |
0 ms |
| Harmonic Distortion |
≦ 2.5% THD at Linear Load |
≦ 3% THD at Linear Load |
| Crest Factor |
3 : 1 |
| EPO Function |
Option |
| PROTECTION |
|---|
| Overload |
Line Mode |
105% - 120% for 30 seconds
121% - 150% for 10 seconds |
| Battery Mode |
101% - 109% for 10 seconds
110% - 120% for 3 seconds |
| Surge Protection |
IEC 61000-4-5 Level 3 |
| Bypass |
Internal Bypass(Automatic and Manual) |
| Short Circuit Protection |
UPS Output Cut Off Immediately |
| BATTERY |
|---|
| Model |
VPB-1000 |
VPB-1500 |
VPB
2000 |
VPB
3000 |
VPB
2000
(2U+2U) |
VPB
3000
(2U+2U) |
VPB-6000 |
VPB-10000 |
| Type |
12V 7Ah |
12V 7Ah |
12V 7Ah |
12V 9Ah |
12V 7Ah |
12V 7Ah |
12V 7Ah |
12V 9Ah |
| Quantity |
3 |
4 |
6 |
6 |
6 |
8 |
20 |
20 |
| Sealed, Maintenance Free |
YES |
| Typical Recharge Time |
4 Hr to 90% |
| External Battery Module |
Option |
| External Battery Connector |
Option |
| MANAGEMENT |
|---|
| Indicator |
LCD Control Panel |
| Communication Port |
RS232, USB(B-type) |
| SNMP Slot |
Option |
| Audible Alarms |
YES |
| PHYSICAL |
|---|
| Power Module |
Dimensions
(WxDxH) (In) |
16.9 x 16.8 x 3.3 |
16.9 x 19.9 x 3.3 |
16.9 x 25 x 3.3 |
16.9 x 16.8 x 3.3 |
16.9 x 23.5 x 5.2 (3U) |
16.9 x 25.9 x 5.2 |
Weights
(Lbs) |
36 |
39.5 |
65.7 |
72 |
22.3 |
44.1 |
55.1 |
Shipping Dimensions
(WxDxH)(In) |
21.5 x 21.7 x 8.1 |
21.7 x 24.5 x 8.7 |
21.7 x 29.5 x 8.7 |
21.5 x 21.7 x 8.1 |
22.1 x 29.2 x 10.8 |
22.3 x 31.7 x 8.2 |
Weights
(Kgs) |
42.8 |
46.3 |
75 |
80.7 |
29.1 |
53 |
69 |
* While 208V output, capacity will derated to 90%
* Specifications are subject to change without further notice
* Specifications are for reference, actual information should be based on real product
Tower Specifications
| UPS |
|---|
| Model |
VPT-1000 |
VPT-1500 |
VPT-2000 |
VPT-3000 |
VPT-6000 |
VPT-10000 |
| Capacity (VA) |
1000 |
1500 |
2000 |
3000 |
6000 |
10000 |
| Capacity (Watts) |
900 |
1350 |
1800 |
2700 |
5400 |
9000 |
| Form |
Tower |
| Phase |
Single Phase |
| Energy Saving |
Yes - ECO mode Efficiency > 94% |
| INPUT |
|---|
| Voltage |
100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac |
208 / 220 / 230 / 240 Vac |
| Voltage Range |
110 Vac |
60 ~ 144 Vac < 25% Load
70 ~ 144 Vac < 50% Load
80 ~ 144 Vac < 75% Load
90 ~ 144 Vac < 100% Load |
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load |
| 220 Vac |
120 ~ 276 Vac < 25% Load
140 ~ 276 Vac < 50% Load
160 ~ 276 Vac < 75% Load
180 ~ 276 Vac < 100% Load |
| Frequency Range |
50 / 60 Hz (Auto Sensing) |
| Power Factor |
> 0.97 |
| Cold Start |
Yes |
| OUTPUT |
|---|
| Rated Power Factor |
0.9 |
| Waveform |
Pure Sine Wave |
| Voltage |
100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac ± 2% |
208 / 220 / 230 / 240 Vac ± 2% |
| Frequency |
50 / 60 Hz ± 0.25 Hz |
| Transfer Time |
0 ms |
| Harmonic Distortion |
≦ 2.5% THD at Linear Load |
≦ 3% THD at Linear Load |
| Crest Factor |
3 : 1 |
| EPO Function |
Yes |
| PROTECTION |
|---|
| Overload |
Line Mode |
105% - 120% for 30 seconds
121% - 150% for 10 seconds |
| Battery Mode |
101% - 109% for 10 seconds
110% - 120% for 3 seconds |
| Surge Protection |
IEC 61000-4-5 Level 3 |
| Bypass |
Internal Bypass(Automatic and Manual) |
| Short Circuit Protection |
UPS Output Cut Off Immediately |
| BATTERY |
|---|
| Model |
VPB-1000 |
VPB-1500 |
VPB-2000 |
VPB-3000 |
VPB-6000 |
VPB-10K |
| Type |
12V 7Ah |
12V 7Ah |
12V 7Ah |
12V 7Ah |
12V 7Ah |
12V 9Ah |
| Quantity |
3 |
4 |
6 |
8 |
20 |
20 |
| Sealed, Maintenance Free |
YES |
| Typical Recharge Time |
4 Hr to 90% |
| External Battery Module |
Option |
| External Battery Connector |
Option |
| MANAGEMENT |
|---|
| Indicator |
LCD Control Panel |
| Communication Port |
RS232, USB(B-type) |
| SNMP Slot |
Option |
| Audible Alarms |
YES |
| PHYSICAL |
|---|
| Power Module |
Dimensions
(WxDxH) (In) |
6 x 16.6 x 9.3 |
6 x 19.7 x 9.5 |
7.9 x 16.6 x 14.1 |
10.2 x 23.3 x 22.5 |
10.2 x 27.2 x 23.1 |
Weights
(Lbs) |
33.5 |
43 |
64 |
66.4 |
190 |
213 |
Shipping Dimensions
(WxDxH)(In) |
11.1 x 21.5 x 14 |
11.1 x 24.7 x 14 |
13.4 x 20.7 x 19.1 |
16.4 x 30 x 31.5 |
16.1 x 34 x 31.5 |
Weights
(Lbs) |
38.4 |
47 |
70 |
72.5 |
206 |
247 |
* While 208V output, capacity will derated to 90%
* Specifications are subject to change without further notice
* Specifications are for reference, actual information should be based on real product
