Standard PDU

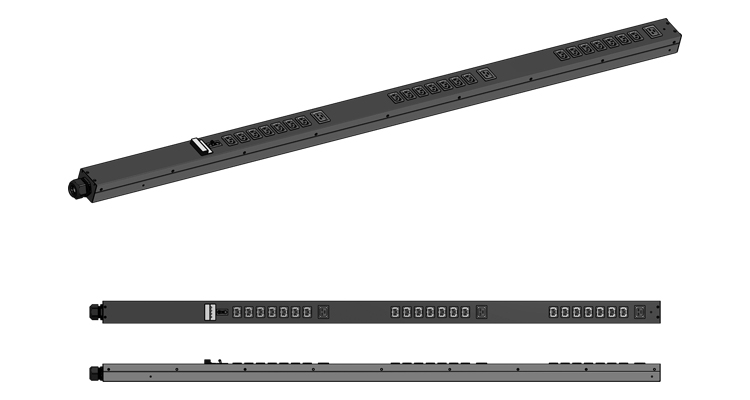

Part Number: RPS-PDU-PC-01

Input Voltage:
208V or 240V Wye

Input Phase: 3 Phase Wye

Input Current: 30 Amps

Input Connector: L21-30P or L22-30P (others available upon request)

Output Type: 3 x C-19 & 21 x C-13

Circuit Protection: 30 Amp Switched Input Breaker

Metering: 3 Phase Current Meter

Dimensions: 70.5" x 2.25" x 2.8"

Temp Rating: 0 - 60C

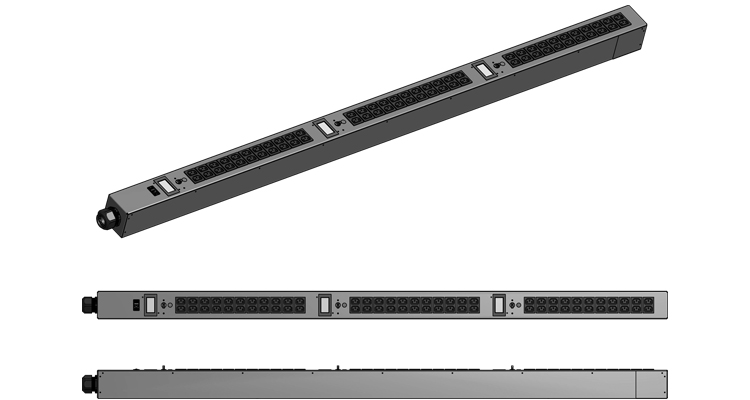

Part Number: RPS-PDU-PC-02

Input Voltage:
 208V or 240V Wye or Delta

Input Phase: 3 Phase Wye or Delta

Input Current: 60 Amps (per phase)

Input Connector: Internal Hard Wire (others available upon request)

Output Type: 66 x C-13

Circuit Protection: 3 x 60 Amp Switched Phase Breakers

Metering: 3 x Single Phase Voltage/Current Meter 1 per Phase

Dimensions: 72" x 3.61" x 3.61"

Temp Rating: 0 - 60C
